Information Protection Film

Secret View Information Protection Film

Notebook & LCD Monitor
Privacy information protection film that secures precious personal information

Personal Information Leakage Prevention Function

Secret View information protection Film secures your personal information from sights of others in public places. It prevents personal information or sensitive security information leakage from laptop or monitor in office or public place and protects your valuable personal information when you use bank ATM and convenient store’s cash dispenser where risk of exposure exists.

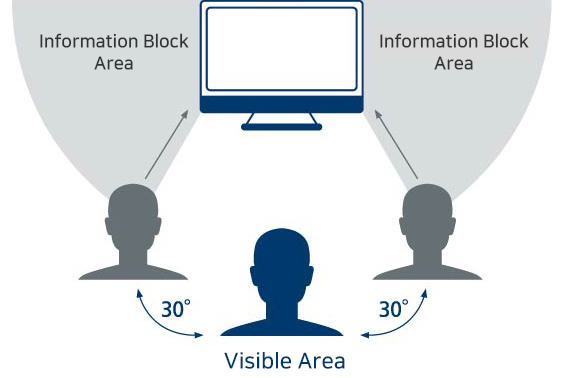

It provides clear sight on the front, but only a black screen is visible at 30 degrees left and right due to the fine blind on the film screen. No one can see your personal information passing the half-side.

Blue Light Shielding Function

Secret View Information Protect Film blocks blue light from computer monitor or laptop monitor screen and protects you from dry eye, eye fatigue, insomnia, stiff shoulders and etc. You can maintain comfortable eyes despite of long time computer use.

Blue Light’s effects on our body

Sleep disorder

Eye fatigue

Waist and shoulder pain

Dry eye

Clean and Hygienic Screen Anti-bacterial Function

Secret View information protection film has excellent anti-bacterial effect of 99.9% and allows you to use your screen much cleaner even for longer use time.

Product Specification

Information Protection Function

Secret View Filter adjusts the angle of view to block the eyes from 30° left and right, preventing personal information exposure.

Vision Protection

Anti-glare coating on the filter surface prevents glare on the display surface and protects your vision.

Scratch Protection

4H (Hard Coating) prevents surface scratches on the LCD surface even when used for a long time.

Freely Attachable

It can be used selectively only when the user desires by adopting a mounting method as well as a fixed type and a step mounting type.

Blue Light Shielding Function

It can block the blue light coming out from the computer monitor or laptop monitor liquid crystal, so you can keep your eyes comfortable despite a long time computer use.

Anti-bacterial Function of Hygienic Screen

It has excellent anti-bacterial effect of 99.9% and helps you to maintain screen cleaner even for a longer use time.

Product Application Fields

Secret View information protection film can be applied at various places where information protection is needed such as mobile phone, computer monitor, laptop, ATM, CD cash dispenser, flat TV, projection TV, CCTV, KIOSK (self-help system), vehicle glass, interior partition, glass window and etc.

When using computer & laptop

Office

Public place

When doing business

Bank · Public institution

Hospital

Cash dispenser · ATM

PC room · Multi-room and etc.

Product Specification

Standard
17inch ~ 32inch or more / Thickness 0.52mm(±5)
Louver Angle
105° ± 5°
ToxicityNon-toxic
Inflammability
Non-inflammable
Cover Sheet(Film)Polythylene Terephthalate
Surface Hardness(Film)
3H(KS D8303-2003)
Configuration(Filter)Hard Coating / Louver Film (Polythylene Terephtalate)
Louver Film Layer
Polythylene Terephtalate
Transmittance
79.1%(KS M 3832-2001)
Characteristics
Improved data security by limiting horizontal viewing angle to within 60°

Information Security Protector

Secret View Nude Form (SVNF)

LCD Monitor
A nude-type simple design that utilizes the modern sense

Personal Information Leakage Prevention Function

Secret View information protection Film secures your personal information from sights of others in public places. It prevents personal information or sensitive security information leakage from laptop or monitor in office or public place and protects your valuable personal information when you use bank ATM and convenient store’s cash dispenser where risk of exposure exists.

It provides clear sight on the front, but only a black screen is visible at 30 degrees left and right due to the fine blind on the film screen. No one can see your personal information passing the half-side.

Blue Light Shielding Function

Secret View Information Protect Film blocks blue light from computer monitor or laptop monitor screen and protects you from dry eye, eye fatigue, insomnia, stiff shoulders and etc. You can maintain comfortable eyes despite of long time computer use.

Blue Light’s effects on our body

Sleep disorder

Eye fatigue

Waist and shoulder pain

Dry eye

Clean and Hygienic Screen Anti-bacterial Function

Secret View information protection film has excellent anti-bacterial effect of 99.9% and allows you to use your screen much cleaner even for longer use time.

Product Specification

Information Protection Function

Secret View Filter adjusts the angle of view to block the eyes from 30° left and right, preventing personal information exposure.

Vision Protection

Anti-glare coating on the filter surface prevents glare on the display surface and protects your vision.

Scratch Protection

4H (Hard Coating) prevents surface scratches on the LCD surface even when used for a long time.

Freely Attachable

It can be used selectively only when the user desires by adopting a mounting method as well as a fixed type and a step mounting type.

Blue Light Shielding Function

It can block the blue light coming out from the computer monitor or laptop monitor liquid crystal, so you can keep your eyes comfortable despite a long time computer use.

Anti-bacterial Function of Hygienic Screen

It has excellent anti-bacterial effect of 99.9% and helps you to maintain screen cleaner even for a longer use time.

Product Application Fields

Secret View information protection film can be applied at various places where information protection is needed such as mobile phone, computer monitor, laptop, ATM, CD cash dispenser, flat TV, projection TV, CCTV, KIOSK (self-help system), vehicle glass, interior partition, glass window and etc.

When using computer & laptop

Office

Public place

When doing business

Bank · Public institution

Hospital

Cash dispenser · ATM

PC room · Multi-room and etc.

Product Specification

Standard17inch ~ 32inch or more / Thickness 0.52mm(±5)
Louver Angle
105° ± 5°
Toxicity
Non-toxic
Inflammability
Non-inflammable
Cover Sheet(Film)Polythylene Terephthalate
Surface Hardness(Film)
3H(KS D8303-2003)
Configuration(Filter)Hard Coating / Louver Film (Polythylene Terephtalate)
Louver Film Layer
Polythylene Terephtalate
Transmittance
79.1%(KS M 3832-2001)
Characteristics
Improved data security by limiting horizontal viewing angle to within 60°

Medical Eye Protector

AR Coating

Anti Reflection Coating

Coating products that reduce reflectance through destructive interference during interfacial reflection

What is AR Coating?

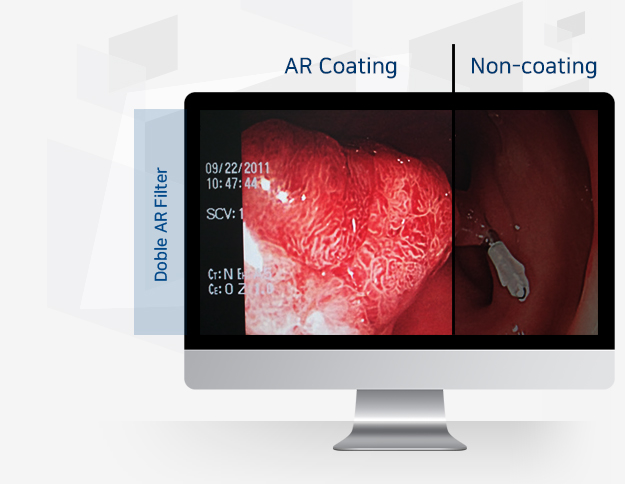

AR Coating is the surface coating with low & high refractive materials in multiple layers which reduces reflectance through destructive interference during interfacial reflection process. It is a coating method that suppresses surface reflection from external light source and increases transmission. It is an optical coating technology that reduces the reflectance to 0.5 % or less and enhances the vision protection and transmittance from light reflection to make the screen look clean and vivid. It is possible to check the micro-vessels with clearer picture quality by AR Coating process. Currently supplying it as panel filter to U.S corporation Stryker.

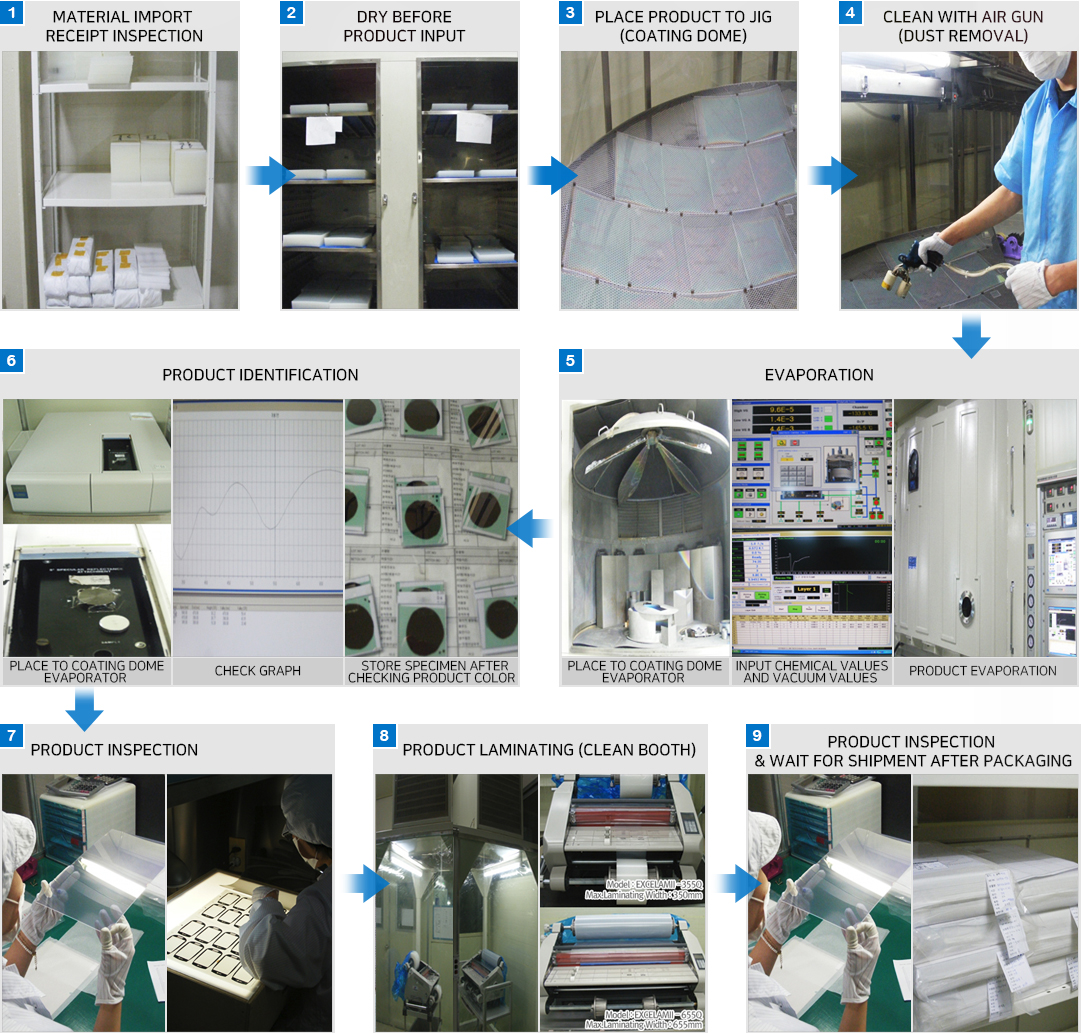

Process Chart

Product Application Fields

AR Coating can applied to various places requiring a clearer image quality such as medical monitor, industrial display, portable display, military portable display, camera, submarine and marine monitor, vehicle navigation and etc.

Medical Monitor

Industrial Display

Portable Display

Military Portable Display

Camera

Submarine and Marine Monitor

Vehicle Navigation

Aviation Display

Product Specification

Management List
Management Standard
Evaluation Method
Optical Characteristics
Transmittance
98% < T
JIS K 7361
Reflectance
0.5% > R
JIS Z 8722
Haze
0.5 > H
JIS K 7136
Color grid
L×a×b
Customizing
Credibility
Hardness
5H <
JIS K 5400
Wear Resistance
500g, 1500cycle
500×40 rpm
Adhesive Force
100/100, No separation for 3 times
JIS Z 1522
HVAC
No change in optical characteristics
No thin film separation
65e±3℃, 90±3%RH, 500hour
Thermal Shock
-40±3℃ ↔ 80±3℃, 30min & 100cycles
Salinity & Moisture
5% Nacl 35±3℃, 48hour

Optical Vision Protector

EYEWANT+

LCD / LED Protection Filter
Conveniently install-able stationary stand glass according to one’s preference.

EYEWANT+ is stand-type eye protector for LCD / LED monitor only. It has been designed so that it can be installed safely and conveniently according to the user’s preference by supplementing the disadvantages of the existing stick-type eye protector. It is a luxuriously designed eye protector with excellent functions for sight protection and liquid crystal protection through AR Coating and hard coating.


Blue Light Shielding Function

Secret View Information Protect Film blocks blue light from computer monitor or laptop monitor screen and protects you from dry eye, eye fatigue, insomnia, stiff shoulders and etc. You can maintain comfortable eyes despite of long time computer use.

Blue Light’s effects on our body

Sleep disorder

Eye fatigue

Waist and shoulder pain

Dry eye

Product Characteristics

Strong Glass Coating

EYEWANT+ uses a special plastic lens and hard coating is applied on both sides to ensure the surface hardness over 6H and prevent scratch.

Surface Anti-Reflection

EYEWANT+ minimizes eye fatigue due to anti-glare by using AR coating (Anti-Reflection : glasses lens coating method) which can reliably prevent irregular reflection due to external light.

Contamination(Water Film) Prevention

Special coating on the surface prevents water or other foreign substances from getting on the screen, so you can maintain the screen clean all the time.

UV Protection

EYEWANT+ absorbs the UV rays emitted from the monitor and shows the most comfortable transmittance to the eye in the visible light band at the same time. It always provides vivid screen.

Simple and Sophisticated Design

By using high quality materials, the design as well as function is stylish enough to make it possible to produce a more luxurious office or room. At the same time, it is designed as convenient hanger-type for easy filter cleaning when installed on LCD / LED monitor.

Product Specification

Size
19inch ~ 32inch (custom-made available)
Thickness
Acrylic material for optical use (PMMA)
Form
Hanger stand type (external type)
Coating
Anti-scratch hard coating (Scale : 5H ~ 6H), AR(Anti-Reflection) Coating, Anti-fouling coating
Surface Reflectance (560 ~ 571nm)
≤0.083%(max)
Visible Light Transmittance (560 ~ 571nm)
73.7%±2%
UV Blocking Rate (200 ~ 320nm)
100%
Characteristics
Anti-glare / Contrast improvement / Anti-character shaking
